PRESSURE GAUGES

NPGS-88 PRECISION PG

dIAL size: (2.5"/4"/6"/10")
range: -1 to 0, 0 - 1 to 0 - 2500 bar
accuracy : + 1%/CL 1 P.S
Mounting: Bottom / Lower back/centre back
process connection: 1/2" - BSP/NPT standard
ingress protection: IP68
Execution: fillable/dry/filled
bourdon tube & socket: ss316l/model - tig welded
case & bezel: SS304/SS316/Aluminium/Din style case
optional: external zero adjustment, 0.5% Acc, case/bezel electro plating

NGS- DIAPHRAGM DIFFERENTIAL PG

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-25mbar to 0-10 Bar
ACCURACY: ±1.6% / CL 1- Ascending F.S..
MOUNTING: Bottom / Back
PROCESS Connection : 1/2" - BSP/NPT Standard
INGRESS PROTECTION: IP68
EXECUTION: Fillable / Dry / Filled
Body & Diaphgram : SS316L /Monel/ Special alloys
Case & Bezel: SS304 /316/Aluminium
Gasket : Viton
Optional: External Zero Adjustment, Electric Contact

NPGE- ALLSS PG,ELECTRIC CONTACT

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: -1 TO 0, 0 - 1 to 0-1600 Bar
ACCURACY: ±1% / CL 1.0 F.S.
MOUNTING: Bottom / Lower Back With standard safety glass window
PROCESS Connection : 1/2" - BSP/NPT Standard
INGRESS PROTECTION: IP65
EXECUTION: Dry / Filled
ELECTRIC CONTACT: Magnetic Contacts, NO / NC, NO NO, NC NC
Bourdon Tube & Socket: SS316L /MONEL-TIG welded
Case & Bezel: SS304 /SS316

NPGL- ALL SS PG, DIAPHRAGM/ CAPSULE LOW PRESSURE MODEL

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-250mmwc to 0-10 bar
ACCURACY: ±1% / CL 1 F.S.
MOUNTING : Bottom
PROCESS Connection : 1/2" - BSP/NPT Standard
EXECUTION: Dry
Body: SS316 (Machined Flange)
Diaphragn: S316/ Monel/ Teflon/ Inconel
Case & Bezel : SS304 / 316/ Aluminum Die Chart
Note: This Model is Suitable for PTFE Linning
Optional : External Zero Adjustments

NPGL- PRESSURE GAUGE WITH DIAPHRAGM SEAL

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-250mmwc to 0-10 bar
ACCURACY: ±1% / CL 1 F.S.
MOUNTING: Bottom
PROCESS Connection: 1/2" - BSP/NPT Standard
EXECUTION : Dry
Body: SS316 (Machined Flange)
Diaphragn: S316/ Monel/ Teflon/ inconel
Case & Bezel: SS304 / 316/ Aluminum Die Chart
Note: This Model is Suitable for PTFE Linning
Optional: External Zero Adjustments

TEMPERATURE GAUGES & ELEMENTS

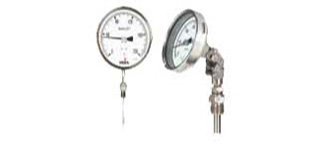

NTGB- BIMETAL EMPERATURE GAUGES

DIAL SIZE: DN40/ DN50/ DN63/ DN80/ DN100/ DN125 / DN150/ DN250 (1.5"/2"/2.5"/3"/4"/4.5"/6"/10")
TEMP RANGE: 100 TO 600°C
ACCURACY : ± CL1
STANDARD : EN 13190
MOUNTING: Bottom / Centre Back/ EVERY ANGLE CLAMP WITH EXTERNAL ZERO ADJUSTMENT 1/4" / 3/8"/ 1/2"-
PROCESS Connection: BSP/NPT Special Connections
INGRESS PROTECTION: IP65, Hermetically Sealed Encloser
EXECUTION: Fillable / Dry
Sensing Element: Bimetal Helix
Case & Bezel: SS304 /SS316,- Stem / Probe TIG welded Case/ Alminium Die Cast - 4" & 6" only

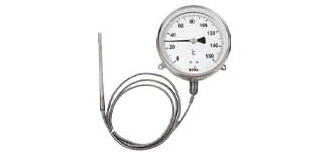

NTGG-GAS FILLED TEMPERATURE GAUGES

DIAL SIZE: DN100 / DNT25 / DN150 / DN250 (4" / 4.5" /:6" / 10")
TEMP RANGE: -100 to 650°C
ACCURACY : ± CL 1
STANDARD : EN13190
MOUNTING : Bottom/Center Back/Every angle Clamp with External Zero Adjustment 1/4"/3/8"/1/2"-
PROCESS Connection: BSP/NPT, Option with Anti Vibration spring
INGRESS PROTECTION: IP65, Options Hermetically Sealed Encloser
EXECUTION : Dry / Fillable
Sensing Element: Bourdon Tube with Temperature Compensation
Case & Bezel: SS304/316, - Stem / Probe TIG welded with Case / Aluminium Die Cast - 4" & 6" only

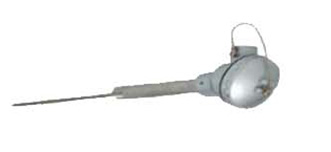

RTD - NIPPLE EXTENTION TYPE

Element Accuracy: PT-100/ 500 / 1000, Class A/B
TEMP RANGE: 200...400 1600°C
No. of element/ Wire: Simplex/ Duplex, 2 Wire/3 Wire/ 4Wire
Combi Standard: IEC-751 / DIN 43 760
Sheath Material: SS316
SHEATH DIAMETER: 3 | 5/6/8/10 mm
TERMINAL HEAD TYPE: THREADED COVER/ HINGED/ 2 SCREWED / WEATHER-: IP65/66/68 | FLAME PROOF/ EXPLOSION PROOF /
Terminal Head Material: Die cast Aluminium/ SS3 04 /SS316
Cable Entry / Conduct 3/4" ET, 1/2" NPT,M20 (F)
Head Extension: Nipple Extension assembly in ASTM A1O5 (Plated) /SS3 04/SS316
Head Extension Length:50 mm upto 250 mm
Immersion Length:50 mm upto 10000 mm
Process Connection:1/2"/3/4" - BSP/NPT,M20 (M)
Option : With Transmitter 4... 20 mA outout, Single/ Double Compression Gland

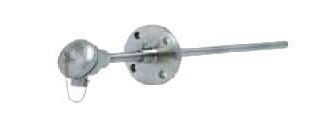

THERMOCOUPLE THREADED / FLANGE TYPE

Element : Type-K/J/N/R/S/B :Mineral insulated / Element with ceramic insulator
Accuracy : Standard to ISA &ANSI MC96. 1
No. of Sensors: Simplex / Duplex
Hot Junction : Ungrounded / Grounded
SHEATH DIAMETER: 3/5/6/8/10 MM
SHEATH MATERIAL: INCONEL 600 / SS316
Terminal Head Type : Weather-IP65/66/68/Flame Proof/ Explosion Proof
Terminal Head Material - Die cast Aluminum / SS304 /SS316
Conduct / Cable Entry : 3/4" ET/NPT, 1/2" NPT,M20,
Immersion Length : 50 mm upto 1500 mm
Process Connection : Standard Flanges - Adjustable / Fixed Type
Head Extension Type Head with female threading
Protection Tube: SS316/ SS346 / SS310 / SS316L/ inconel 600
Protection Tube : Size 10X1.5 /12X1.5 / PIPE 3/8"/1/2"/3/4"-SCH. 40 / 80
Options : With Transmitter 4 to 20 m.A, Single / Double Compression Gland

LEVEL & PRESSURE INSTRUMENTS

NLS - SIDE / TOP MOUNTED LEVEL SWITCH

Mounting : SIDE MOUNT / TOP MOUNT
Specific Gravity: 0.75
Operating Temp: 10°C, 100°C...300°C (use cooling system with head) 12
Operating Pressure : Bar
Switch Points / NO. of : 1No / 2Nos / 3Nos / 4Nos
PROCESS CONNECTION : 1" BSP/NPT / STANDARD FLANGES/ 2" BSP/ SS 316
INGRESS PROTECTION: WEATHER PROOF / FLAME PROOF / Ex-Proof
Switch Type: 1SPST & 1SPDT
Switch Rating: 5A/230 VAC Micro Switch/0.5 A 110 VAC Reed Switch
Insertion Length: 150-300 mm (Side) 150-3000 mm (Top)
Enclosure Protection : Die Cast Aluminum/ SS304
Wetted Parts Protection : Non Magnetic SS316, Surface PTFE coating - PVDF

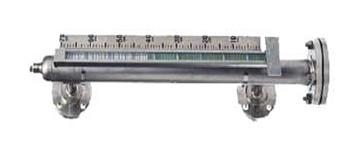

NLGM - MAGNELIC LEVEL GAUGE

Mounting: REAR / SIDE / TOP MOUNT
Specific Gravity: 0.75
Operating Temp : -20... 120°c /-20...300°C
Operating Pressure: 10bar / 25 bar / 50 Bar / 80 Bar /100 Bar
Process Connection: 1/2"...1" NPT / Standard Flanges/Weld in
INDICATOR: ROLLING FLAPPERS - BLUE & WHITE/RED & WHITE
WETTED PARTS PROTECTION: SS316 / SS316L/ WITH NACE
Distance Center to : 500 mm... 6000 mm
Center Scale: Aluminium / SS304 /SS316 Least Count: As per requirement
Options: Switches -1SPDT, Switch Points - 1/2/3/4 Nos / Transmitter /Valve

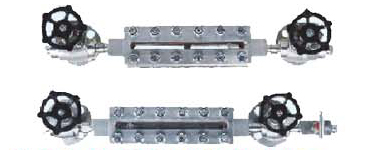

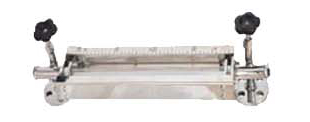

NLGR - GLASS LEVEL GAUGE - REFLEX

Mounting:LEFT /RIGHT SIDE /REAR SIDE/ TOP SIDE
Operating Temp: -20...120°C/UPTO 240°C/UPTO 400°C
Operating Pressure: 20bar / 35 bar / 65 Bar / 80 Bar 100bar / 200bar
Process Connection: 1/2"...1" NPT/Standard Flanges/Weld In
INDICATOR: GAUGE GLASS- Borosilicate / Klinger
WETTED PARTS: SS304 / SS316 / CS105
Distance Center to:500 mm...6000 mm
Center Scale: Aluminium / SS304/SS316
Least Count:As per requirement
Options: Needle/Ball Valves/Flanges with Vent/Drain Port, Auto shut of valve

NLGR - GLASS LEVEL GAUGE - TUBULAR

Mounting: REAR/LEFT / RIGHT SIDE /TOP SIDE
Operating Temp: -10... 100°C
Operating Pressure: Upto 10 Bar
Process Connection: 1/2"...1" BSP/NPT/ Standard Flandes
INDICATOR: BOROSILICATE GLASS Tube / PLEXI Glass
WETTED PARTS:SS304 / SS316 / CS105
Distance Center TO : 500 mm...2000 mm
Center Scale: Aluminium/SS304/SS316
Least count:As per requirement
Options:Drain / Vent with ball VALVES

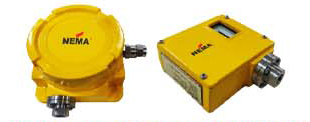

NLGR - FLAMEPROOF / NWPS - WEATHERPROFF PRESSURE SWITCHES

Features : Fixed/Field Adjustable (External)
Accuracy:- ± 1% / CL 1
Repeatability: ±0.5% /CL 0.5, ON Raising /On Falling
Mounting: Bottom/ Back PaNel /2"pipe Mounting Bracket
ENCLOSURE: Die CAST ALUMINIUM -WHEATHER PROOF -IP68
WETTED PARTS : BOTTOM BODY, DIAPHRAGM, SS316/ MONEL INCONEL/ PTFE
Process Connection : 1/4" BSP(F)
Max.Process Temp : 150°C
switch Type & Rating: 1SPDT,2SPDT,5A / 250 VAC / 0.2A 24VDC Micro Switch
Ranges: 10mbar....60 bar, -1... 400mbar
Differential:5 to 15%
Cable Entry : PG13.5(std)/Single / Double Compression Gland

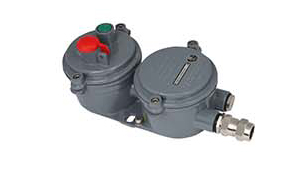

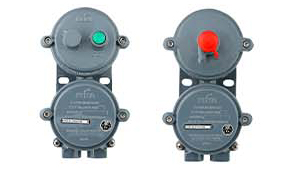

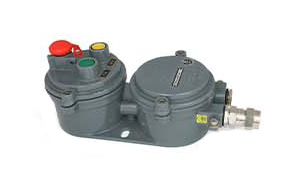

CONTROL STATION

NJB 40102 (IIA IIB) NJB 80102 (IIC)

FLP/WP direct entry on/off push button

NPB 40201 (IIA IIB) NPB 80201 (IIC)

FLP/WP only on or off push button

NPB 40202 (IIA IIB) NPB 80202(IIC)

FLP/WP on-off push button

NPB 40203 (IIA IIB) NPB 80203 (IIC)

FLP/WP reverse-forward-stop push button

NPB 40204 (IIA IIB) NPB 80204 (IIC)

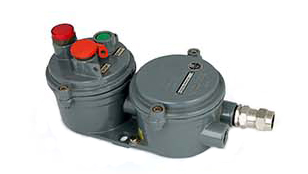

FLP/WP start-stop-indicating push button

NPB 40207 (IIC IIB) NPB 80207 (IIC)

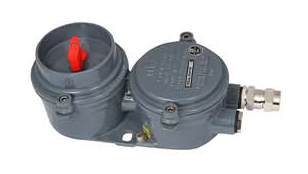

FLP/WP on-off rotary switch 16A/ 25A /320V/ 440V AC

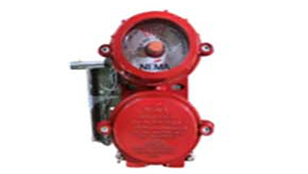

FIRE alarm station

NPB 40208 (IIA IIB) NPB 80208 (IIC) MANUAL CALL POINT

FLP/WP TEMPERATURE INDICATOR

NPB40209 (IIA IIB) NPB 80209 (IIC)

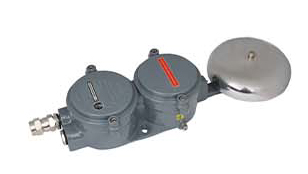

FLP/WP ELECTRIC/ GONG BELL

NPB 40210 (IIA IIB) NPB 80210 (IIC) 230V, 110V AC

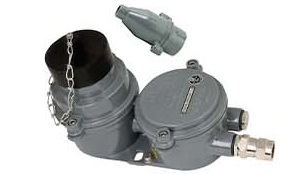

NPB 40211 (IIA IIB) NPB 80211 (IIC)

FLP/WP SWITCH SOCKET 16A /25A/ 32A 230V / 440V AC 3PIN / 4PIN / 5PIN

FLP/WP HOOTER

NPB 40212 (IIA IIB) NPB 80212 (IIC) 230V AC / 24V DC

FLP/WP ACCEPT HOOTER

NPB 40212 (IIA IIB) NPB 80212 (IIC) 230V AC / 24V DC

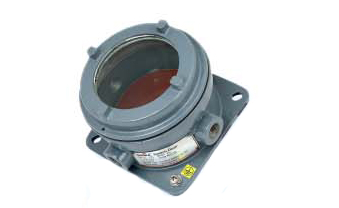

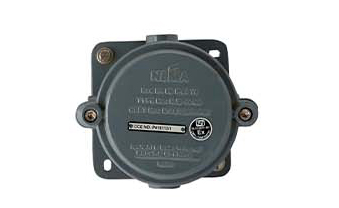

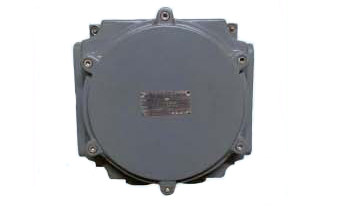

FLP/WP JUNCTION BOX (RANGE:80 TO 400MM)

NJB 40080 (IIA,IIB) NJB 80080 (IIC)

FLP/WP 80MM JUNCTION BOX

NJB 40100 (IIA,IIB) NJB 80100 (IIC)

FLP/WP 100MM JUNCTION box

NJB 40130 (IIA,IIB) NJB 80130 (IIC)

FLP/WP 130MM JUNCTION box

NJB 40200 (IIA,IIB) NJB 80200 (IIC)

FLP/WP 200MM JUNCTION box

NJB 40250 (IIA,IIB) NJB 80250 (IIC)

FLP/WP 250MM JUNCTION box

NJB 40350 (IIA,IIB) NJB 80350 (IIC)

FLP/WP 350MM JUNCTION box

CONTROL STATION & DISTRIBUTION BOARD

NLCS 80400 (IIC)

NLCS 40400 (IIA, IIB) FLP/ WP LCS WITH AMMETER & PB

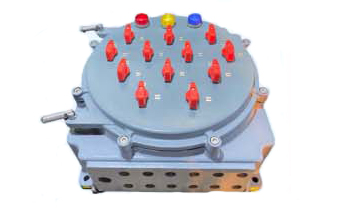

NJB 40130 (IIA,IIB) NJB 80130 (IIC)

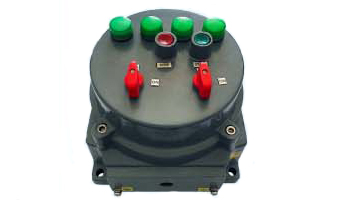

FLP/WP 130 mm JUNCTION box WITH 6 nos. PUSH BUTTON

NLCS 40400 (IIA, IIB)

NLCS 80400 (IIC) DOL STARTER FLP/WP

NJB 40200 (IIA,IIB) NJB 80200 (IIC)

FLP/WP 63a switch socket with plug top

FLP/WP DISTRIBUTION board

FLP/WP control panel with display

FLP/WP annunciator control panel

FLP/WP multiway switch socket with trolley

FLP/WP operating panel

FLP/WP control panel with hmi display

LIGHT FITTING

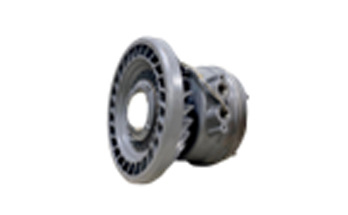

FLP / WP LED WELLGLASS

FOR IIA / IIB / IIC UPTO 72 WATTS

FLP/WP WELL GLASS

NLW 40250(IIA/ IIB) NLW 80250 (IIC) UPTO 100 WATTS

FLP/WP REACTOR VESSEL LAMP

NRV 40100 (IIC / IIB) NRV 80100 (IIC) 100W GLS/ 23W CFL / UPTO 15W LED

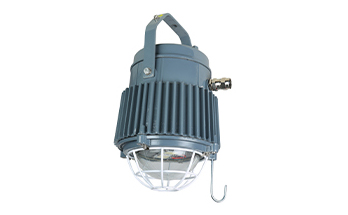

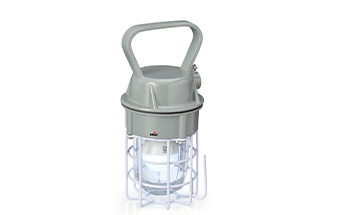

FLP/WP HAND lamp

NHL 40100 (IIC / IIB) NHL 80100 (IIC) 100W GLS/ 230V/24V AC UPTO 15W LED

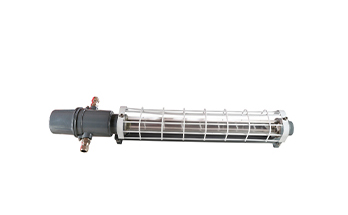

FLP/WP TUBE LIGHT FIXTURE

NLT 40140 (IIA / IIB) 1 X 40W / 2 X 40W / UPTO 1 X 22W / 2 X 22W LED

FLP/WP WELLGLASS

NLW 40200 (IIA IIB) NLW 80200 (IIC) 200W / 125W HPMV / 70W MH / 70W HPSV 160W MILL/ 2 X23W CFL/ UPTO 72W LED

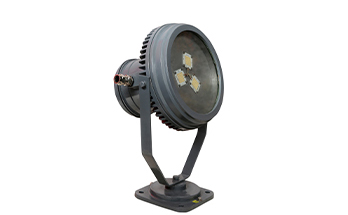

FLP/WP FLOOD LIGHT

NFL 40400(IIA / IIB) NFL (IIC) UPTO 180W LED

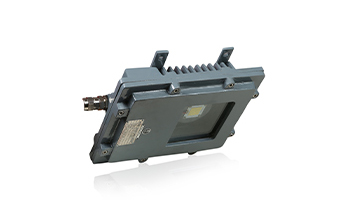

FLP/WP BULK HEAD FIXTURE

NBH 40200(IIA / IIB) UPTO 50W LED

ACCESSORIES & MISCELLANEOUS ITEMS

FLP/WP SMOKE DETECTOR NJB 40130 (IIA/ IIB) NJB 80130 (IIC)

FLP/WP AVIATION LIGHT FITTING NLW 40200 (IIA / IIB) NLW 80200(IIC)

FLP/WP hooter with flasher NJB 40130 (IIA/IIB) NJB 80130 (IIC)

FLP/WP TELEPHONE INTRUMENT NLCS 40200 (IIA/IIB) NLCS 80200 (IIC)

FLP/WP clean room gps watch NLTC 40236-B (IIA/IIB)

FLP/WP emergency light NBH 40200 (IIA/IIB)

FLP/WP limit switch (roller/long lever) NLS 40010(IIA/IIB) NLS 80010 (IIC)

FLP/WP crane brake

FLP/WP EXHAUST FAN RANGE:- 9" TO 24"

FLP/WP CABLE GLANDS AND CONCUIT ACCESSORIES

FLP/WP PEDESTAL FAN / WALL MOUNT FAN RANGE:- 18" TO 30"

PRESSURE GAUGES

NPGS-88 PRECISION PG

dIAL size: (2.5"/4"/6"/10")
range: -1 to 0, 0 - 1 to 0 - 2500 bar
accuracy : + 1%/CL 1 P.S
Mounting: Bottom / Lower back/centre back
process connection: 1/2" - BSP/NPT standard
ingress protection: IP68
Execution: fillable/dry/filled
bourdon tube & socket: ss316l/model - tig welded
case & bezel: SS304/SS316/Aluminium/Din style case
optional: external zero adjustment, 0.5% Acc, case/bezel electro plating

NGS- DIAPHRAGM DIFFERENTIAL PG

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-25mbar to 0-10 Bar
ACCURACY: ±1.6% / CL 1- Ascending F.S..
MOUNTING: Bottom / Back
PROCESS Connection : 1/2" - BSP/NPT Standard
INGRESS PROTECTION: IP68
EXECUTION: Fillable / Dry / Filled
Body & Diaphgram : SS316L /Monel/ Special alloys
Case & Bezel: SS304 /316/Aluminium
Gasket : Viton
Optional: External Zero Adjustment, Electric Contact

NPGE- ALLSS PG,ELECTRIC CONTACT

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: -1 TO 0, 0 - 1 to 0-1600 Bar
ACCURACY: ±1% / CL 1.0 F.S.
MOUNTING: Bottom / Lower Back With standard safety glass window
PROCESS Connection : 1/2" - BSP/NPT Standard
INGRESS PROTECTION: IP65
EXECUTION: Dry / Filled
ELECTRIC CONTACT: Magnetic Contacts, NO / NC, NO NO, NC NC
Bourdon Tube & Socket: SS316L /MONEL-TIG welded
Case & Bezel: SS304 /SS316

NPGL- ALL SS PG, DIAPHRAGM/ CAPSULE LOW PRESSURE MODEL

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-250mmwc to 0-10 bar
ACCURACY: ±1% / CL 1 F.S.
MOUNTING : Bottom
PROCESS Connection : 1/2" - BSP/NPT Standard
EXECUTION: Dry
Body: SS316 (Machined Flange)
Diaphragn: S316/ Monel/ Teflon/ Inconel
Case & Bezel : SS304 / 316/ Aluminum Die Chart
Note: This Model is Suitable for PTFE Linning
Optional : External Zero Adjustments

NPGL- PRESSURE GAUGE WITH DIAPHRAGM SEAL

DIAL SIZE: DN100 / DN150 (4" / 6")
RANGE: 0-250mmwc to 0-10 bar
ACCURACY: ±1% / CL 1 F.S.
MOUNTING: Bottom
PROCESS Connection: 1/2" - BSP/NPT Standard
EXECUTION : Dry
Body: SS316 (Machined Flange)
Diaphragn: S316/ Monel/ Teflon/ inconel
Case & Bezel: SS304 / 316/ Aluminum Die Chart
Note: This Model is Suitable for PTFE Linning
Optional: External Zero Adjustments

TEMPERATURE GAUGES & ELEMENTS

NTGB- BIMETAL EMPERATURE GAUGES

DIAL SIZE: DN40/ DN50/ DN63/ DN80/ DN100/ DN125 / DN150/ DN250 (1.5"/2"/2.5"/3"/4"/4.5"/6"/10")
TEMP RANGE: 100 TO 600°C
ACCURACY : ± CL1
STANDARD : EN 13190
MOUNTING: Bottom / Centre Back/ EVERY ANGLE CLAMP WITH EXTERNAL ZERO ADJUSTMENT 1/4" / 3/8"/ 1/2"-
PROCESS Connection: BSP/NPT Special Connections
INGRESS PROTECTION: IP65, Hermetically Sealed Encloser
EXECUTION: Fillable / Dry
Sensing Element: Bimetal Helix
Case & Bezel: SS304 /SS316,- Stem / Probe TIG welded Case/ Alminium Die Cast - 4" & 6" only

NTGG-GAS FILLED TEMPERATURE GAUGES

DIAL SIZE: DN100 / DNT25 / DN150 / DN250 (4" / 4.5" /:6" / 10")
TEMP RANGE: -100 to 650°C
ACCURACY : ± CL 1
STANDARD : EN13190
MOUNTING : Bottom/Center Back/Every angle Clamp with External Zero Adjustment 1/4"/3/8"/1/2"-
PROCESS Connection: BSP/NPT, Option with Anti Vibration spring
INGRESS PROTECTION: IP65, Options Hermetically Sealed Encloser
EXECUTION : Dry / Fillable
Sensing Element: Bourdon Tube with Temperature Compensation
Case & Bezel: SS304/316, - Stem / Probe TIG welded with Case / Aluminium Die Cast - 4" & 6" only

RTD - NIPPLE EXTENTION TYPE

Element Accuracy: PT-100/ 500 / 1000, Class A/B
TEMP RANGE: 200...400 1600°C
No. of element/ Wire: Simplex/ Duplex, 2 Wire/3 Wire/ 4Wire
Combi Standard: IEC-751 / DIN 43 760
Sheath Material: SS316
SHEATH DIAMETER: 3 | 5/6/8/10 mm
TERMINAL HEAD TYPE: THREADED COVER/ HINGED/ 2 SCREWED / WEATHER-: IP65/66/68 | FLAME PROOF/ EXPLOSION PROOF /
Terminal Head Material: Die cast Aluminium/ SS3 04 /SS316
Cable Entry / Conduct 3/4" ET, 1/2" NPT,M20 (F)
Head Extension: Nipple Extension assembly in ASTM A1O5 (Plated) /SS3 04/SS316
Head Extension Length:50 mm upto 250 mm
Immersion Length:50 mm upto 10000 mm
Process Connection:1/2"/3/4" - BSP/NPT,M20 (M)
Option : With Transmitter 4... 20 mA outout, Single/ Double Compression Gland

THERMOCOUPLE THREADED / FLANGE TYPE

Element : Type-K/J/N/R/S/B :Mineral insulated / Element with ceramic insulator
Accuracy : Standard to ISA &ANSI MC96. 1
No. of Sensors: Simplex / Duplex
Hot Junction : Ungrounded / Grounded
SHEATH DIAMETER: 3/5/6/8/10 MM
SHEATH MATERIAL: INCONEL 600 / SS316
Terminal Head Type : Weather-IP65/66/68/Flame Proof/ Explosion Proof
Terminal Head Material - Die cast Aluminum / SS304 /SS316
Conduct / Cable Entry : 3/4" ET/NPT, 1/2" NPT,M20,
Immersion Length : 50 mm upto 1500 mm
Process Connection : Standard Flanges - Adjustable / Fixed Type
Head Extension Type Head with female threading
Protection Tube: SS316/ SS346 / SS310 / SS316L/ inconel 600
Protection Tube : Size 10X1.5 /12X1.5 / PIPE 3/8"/1/2"/3/4"-SCH. 40 / 80
Options : With Transmitter 4 to 20 m.A, Single / Double Compression Gland

LEVEL & PRESSURE INSTRUMENTS

NLS - SIDE / TOP MOUNTED LEVEL SWITCH

Mounting : SIDE MOUNT / TOP MOUNT
Specific Gravity: 0.75
Operating Temp: 10°C, 100°C...300°C (use cooling system with head) 12
Operating Pressure : Bar
Switch Points / NO. of : 1No / 2Nos / 3Nos / 4Nos
PROCESS CONNECTION : 1" BSP/NPT / STANDARD FLANGES/ 2" BSP/ SS 316
INGRESS PROTECTION: WEATHER PROOF / FLAME PROOF / Ex-Proof
Switch Type: 1SPST & 1SPDT
Switch Rating: 5A/230 VAC Micro Switch/0.5 A 110 VAC Reed Switch
Insertion Length: 150-300 mm (Side) 150-3000 mm (Top)
Enclosure Protection : Die Cast Aluminum/ SS304
Wetted Parts Protection : Non Magnetic SS316, Surface PTFE coating - PVDF

NLGM - MAGNELIC LEVEL GAUGE

Mounting: REAR / SIDE / TOP MOUNT
Specific Gravity: 0.75
Operating Temp : -20... 120°c /-20...300°C
Operating Pressure: 10bar / 25 bar / 50 Bar / 80 Bar /100 Bar
Process Connection: 1/2"...1" NPT / Standard Flanges/Weld in
INDICATOR: ROLLING FLAPPERS - BLUE & WHITE/RED & WHITE
WETTED PARTS PROTECTION: SS316 / SS316L/ WITH NACE
Distance Center to : 500 mm... 6000 mm
Center Scale: Aluminium / SS304 /SS316 Least Count: As per requirement
Options: Switches -1SPDT, Switch Points - 1/2/3/4 Nos / Transmitter /Valve

NLGR - GLASS LEVEL GAUGE - REFLEX

Mounting:LEFT /RIGHT SIDE /REAR SIDE/ TOP SIDE
Operating Temp: -20...120°C/UPTO 240°C/UPTO 400°C
Operating Pressure: 20bar / 35 bar / 65 Bar / 80 Bar 100bar / 200bar
Process Connection: 1/2"...1" NPT/Standard Flanges/Weld In
INDICATOR: GAUGE GLASS- Borosilicate / Klinger
WETTED PARTS: SS304 / SS316 / CS105
Distance Center to:500 mm...6000 mm
Center Scale: Aluminium / SS304/SS316
Least Count:As per requirement
Options: Needle/Ball Valves/Flanges with Vent/Drain Port, Auto shut of valve

NLGR - GLASS LEVEL GAUGE - TUBULAR

Mounting: REAR/LEFT / RIGHT SIDE /TOP SIDE
Operating Temp: -10... 100°C
Operating Pressure: Upto 10 Bar
Process Connection: 1/2"...1" BSP/NPT/ Standard Flandes
INDICATOR: BOROSILICATE GLASS Tube / PLEXI Glass
WETTED PARTS:SS304 / SS316 / CS105
Distance Center TO : 500 mm...2000 mm
Center Scale: Aluminium/SS304/SS316
Least count:As per requirement
Options:Drain / Vent with ball VALVES

NLGR - FLAMEPROOF / NWPS - WEATHERPROFF PRESSURE SWITCHES

Features : Fixed/Field Adjustable (External)
Accuracy:- ± 1% / CL 1
Repeatability: ±0.5% /CL 0.5, ON Raising /On Falling
Mounting: Bottom/ Back PaNel /2"pipe Mounting Bracket
ENCLOSURE: Die CAST ALUMINIUM -WHEATHER PROOF -IP68
WETTED PARTS : BOTTOM BODY, DIAPHRAGM, SS316/ MONEL INCONEL/ PTFE
Process Connection : 1/4" BSP(F)
Max.Process Temp : 150°C
switch Type & Rating: 1SPDT,2SPDT,5A / 250 VAC / 0.2A 24VDC Micro Switch
Ranges: 10mbar....60 bar, -1... 400mbar
Differential:5 to 15%
Cable Entry : PG13.5(std)/Single / Double Compression Gland

CONTROL STATION

NJB 40102 (IIA IIB) NJB 80102 (IIC)

FLP/WP direct entry on/off push button

NPB 40201 (IIA IIB) NPB 80201 (IIC)

FLP/WP only on or off push button

NPB 40202 (IIA IIB) NPB 80202(IIC)

FLP/WP on-off push button

NPB 40203 (IIA IIB) NPB 80203 (IIC)

FLP/WP reverse-forward-stop push button

NPB 40204 (IIA IIB) NPB 80204 (IIC)

FLP/WP start-stop-indicating push button

NPB 40207 (IIC IIB) NPB 80207 (IIC)

FLP/WP on-off rotary switch 16A/ 25A /320V/ 440V AC

FIRE alarm station

NPB 40208 (IIA IIB) NPB 80208 (IIC) MANUAL CALL POINT

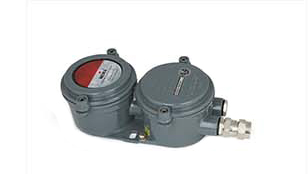

FLP/WP TEMPERATURE INDICATOR

NPB40209 (IIA IIB) NPB 80209 (IIC)

FLP/WP ELECTRIC/ GONG BELL

NPB 40210 (IIA IIB) NPB 80210 (IIC) 230V, 110V AC

NPB 40211 (IIA IIB) NPB 80211 (IIC)

FLP/WP SWITCH SOCKET 16A /25A/ 32A 230V / 440V AC 3PIN / 4PIN / 5PIN

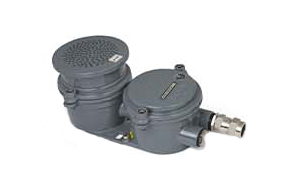

FLP/WP HOOTER

NPB 40212 (IIA IIB) NPB 80212 (IIC) 230V AC / 24V DC

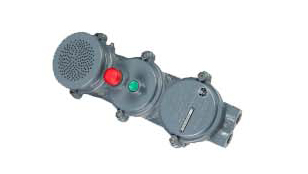

FLP/WP ACCEPT HOOTER

NPB 40212 (IIA IIB) NPB 80212 (IIC) 230V AC / 24V DC

FLP/WP JUNCTION BOX (RANGE:80 TO 400MM)

NJB 40080 (IIA,IIB) NJB 80080 (IIC)

FLP/WP 80MM JUNCTION BOX

NJB 40100 (IIA,IIB) NJB 80100 (IIC)

FLP/WP 100MM JUNCTION box

NJB 40130 (IIA,IIB) NJB 80130 (IIC)

FLP/WP 130MM JUNCTION box

NJB 40200 (IIA,IIB) NJB 80200 (IIC)

FLP/WP 200MM JUNCTION box

NJB 40250 (IIA,IIB) NJB 80250 (IIC)

FLP/WP 250MM JUNCTION box

NJB 40350 (IIA,IIB) NJB 80350 (IIC)

FLP/WP 350MM JUNCTION box

CONTROL STATION & DISTRIBUTION BOARD

NLCS 80400 (IIC)

NLCS 40400 (IIA, IIB) FLP/ WP LCS WITH AMMETER & PB

NJB 40130 (IIA,IIB) NJB 80130 (IIC)

FLP/WP 130 mm JUNCTION box WITH 6 nos. PUSH BUTTON

NLCS 40400 (IIA, IIB)

NLCS 80400 (IIC) DOL STARTER FLP/WP

NJB 40200 (IIA,IIB) NJB 80200 (IIC)

FLP/WP 63a switch socket with plug top

FLP/WP DISTRIBUTION board

FLP/WP control panel with display

FLP/WP annunciator control panel

FLP/WP multiway switch socket with trolley

FLP/WP operating panel

FLP/WP control panel with hmi display

LIGHT FITTING

FLP / WP LED WELLGLASS

FOR IIA / IIB / IIC UPTO 72 WATTS

FLP/WP WELL GLASS

NLW 40250(IIA/ IIB) NLW 80250 (IIC) UPTO 100 WATTS

FLP/WP REACTOR VESSEL LAMP

NRV 40100 (IIC / IIB) NRV 80100 (IIC) 100W GLS/ 23W CFL / UPTO 15W LED

FLP/WP HAND lamp

NHL 40100 (IIC / IIB) NHL 80100 (IIC) 100W GLS/ 230V/24V AC UPTO 15W LED

FLP/WP TUBE LIGHT FIXTURE

NLT 40140 (IIA / IIB) 1 X 40W / 2 X 40W / UPTO 1 X 22W / 2 X 22W LED

FLP/WP WELLGLASS

NLW 40200 (IIA IIB) NLW 80200 (IIC) 200W / 125W HPMV / 70W MH / 70W HPSV 160W MILL/ 2 X23W CFL/ UPTO 72W LED

FLP/WP FLOOD LIGHT

NFL 40400(IIA / IIB) NFL (IIC) UPTO 180W LED

FLP/WP BULK HEAD FIXTURE

NBH 40200(IIA / IIB) UPTO 50W LED

ACCESSORIES & MISCELLANEOUS ITEMS

FLP/WP SMOKE DETECTOR NJB 40130 (IIA/ IIB) NJB 80130 (IIC)

FLP/WP AVIATION LIGHT FITTING NLW 40200 (IIA / IIB) NLW 80200(IIC)

FLP/WP hooter with flasher NJB 40130 (IIA/IIB) NJB 80130 (IIC)

FLP/WP TELEPHONE INTRUMENT NLCS 40200 (IIA/IIB) NLCS 80200 (IIC)

FLP/WP clean room gps watch NLTC 40236-B (IIA/IIB)

FLP/WP emergency light NBH 40200 (IIA/IIB)

FLP/WP limit switch (roller/long lever) NLS 40010(IIA/IIB) NLS 80010 (IIC)

FLP/WP crane brake

FLP/WP EXHAUST FAN RANGE:- 9" TO 24"

FLP/WP CABLE GLANDS AND CONCUIT ACCESSORIES

FLP/WP PEDESTAL FAN / WALL MOUNT FAN RANGE:- 18" TO 30"
